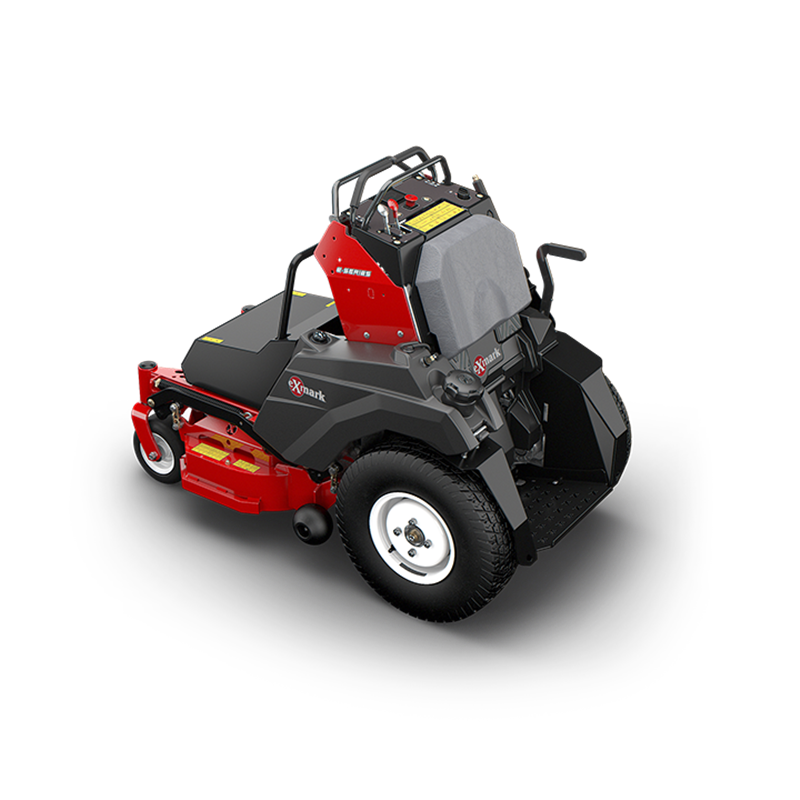

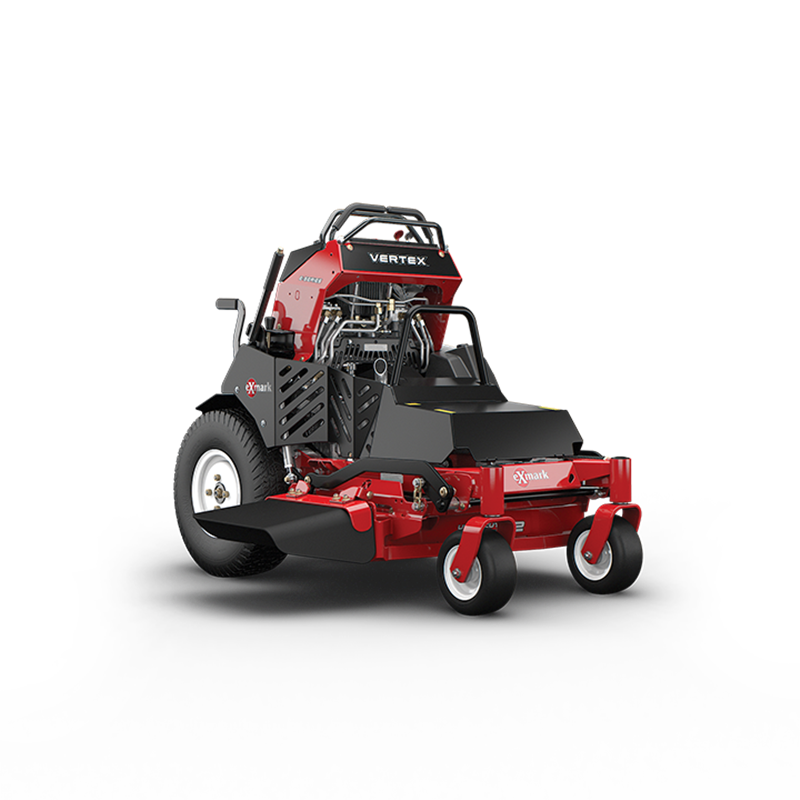

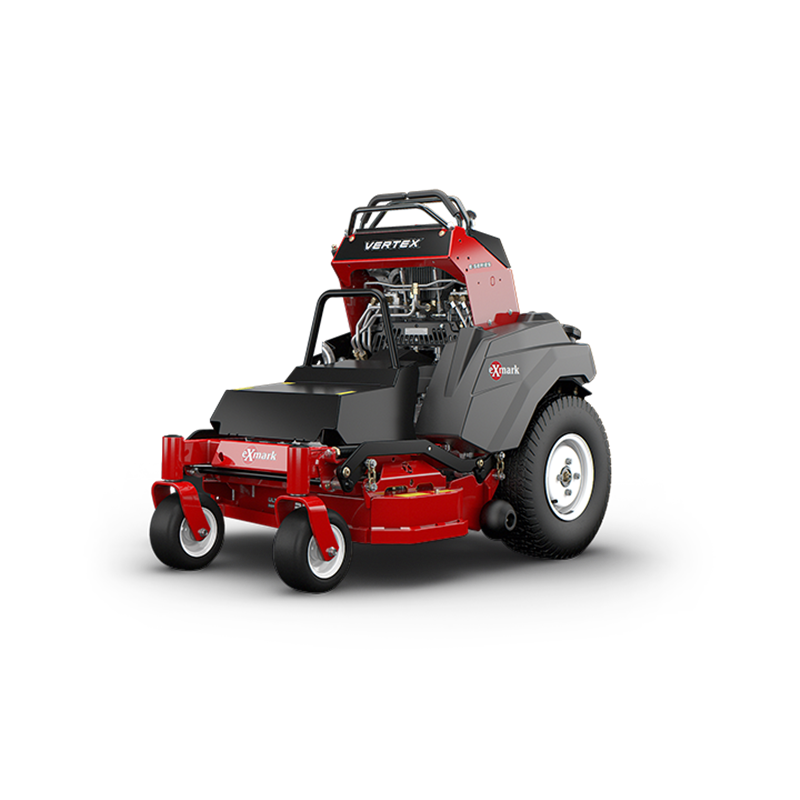

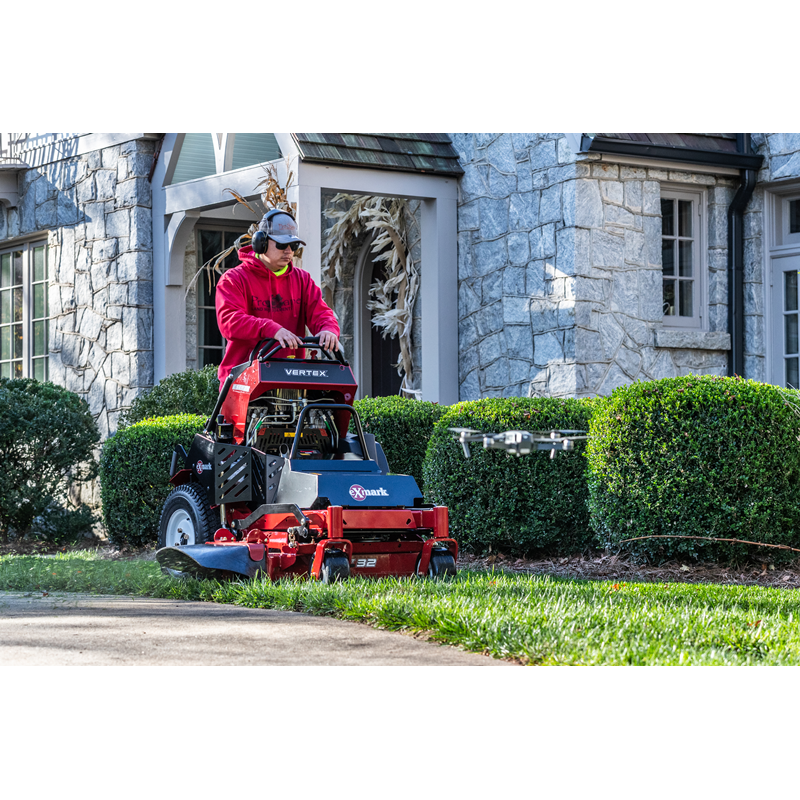

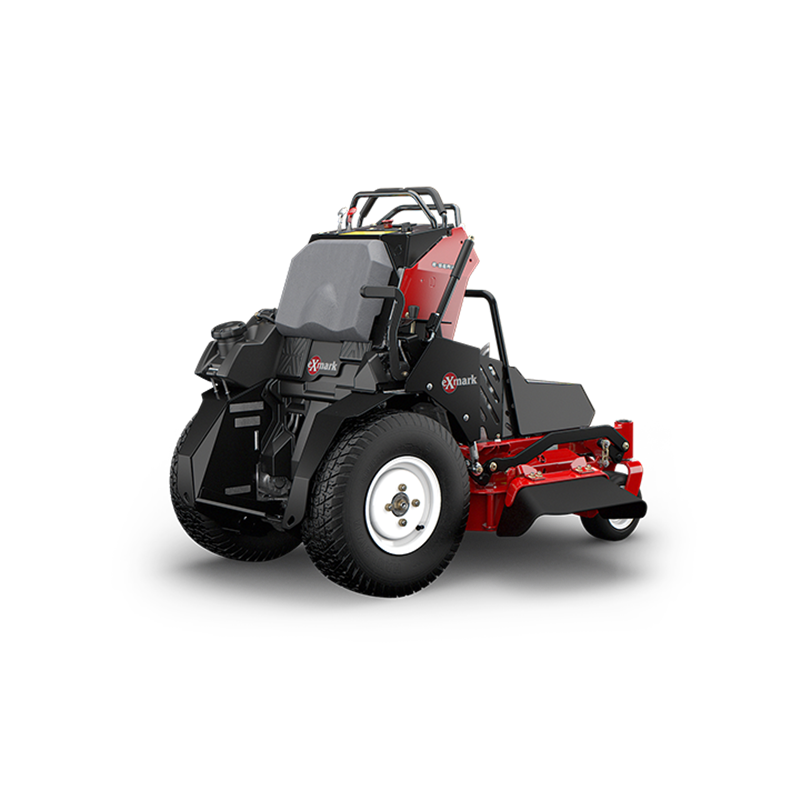

Exmark Vertex E-Series with 18.5 HP* Kawasaki FS600V Engine and 36″ UltraCut Series 3 Deck

Contact us for price

Stock status: Call Store for Availability

When you need a more productive mower for small to mid-size properties, Vertex E-Series is the right choice. With the operator placed comfortably on a suspended platform between the drive wheels, Vertex E-Series is designed to easily clear gates that would stop larger machines in their tracks. And with speeds up to 7.5mph forward, you’ll finish jobs faster, with less fatigue, than you would with a walk-behind mower. Your customers will love Exmark’s signature cut quality, and you’ll love how fast you got the job done. That’s a win-win.

Call Us Now

Specs

UPC

193308241401

Steering Control

Twin levers with adjustable front reference bar to modify forward ground speed.

Front Caster Tires

9 x 4.50-5, smooth-tread, semi-pneumatic tires with sealed ball bearings.

Drive Tires

21x7.00-10 Kenda K507

Parking Brake

Lever-actuated bar brake.

Tractor Frame

Welded, heavy-duty 1.5" x 3" tubular steel.

Blade Spindles

No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.

Cup Holder

No

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Engine Hour Meter

Engine Brand

Kawasaki

Engine Model

FS600V

Engine Displacement

603

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection 0–7.5 mph (12.1 kmph) forward, 0–4.0 mph (6.4 kmph) reverse

Engine Spec

_S36

Engine Speed

3,600 rpm

Air Filter

Standard Engine Manufacturer's air filter

Fuel Capacity

5-gallon (18.9-L), single fuel tank with single fill location.

Drive Description

Two Hydro Gear 10 cc pumps powering two Parker 12 cubic inch motors.

Fuel Type

Gas Carbureted

PTO Engagement

Warner 105 ft-lb clutch

Drive System

Hydro-Drive

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Yes - Float Gauge

Deck Lift

Single point HOC

Carb Compliant

Yes

Safety Package

Operator Presence Controls (OPC) with safety interlock system indicators

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 3. Side discharge standard, with flexible discharge chute and option to bag or mulch.

Width / Cutting Deck

36"

Deck Construction

7-gauge top that is formed and continuously seam welded, 7-gauge side skirt

Cutting Heights

1.0" (2.54 cm) to 4.5" (11.4 cm) in 0.25" (0.64 cm) increments

Blade Tip Speed

Approximately 18,500 fpm.

Blades

2 Blades at 18.00" Length

Width

48.0

Height

47.3

Length

58.103

Curb Weight

779
