$12,099.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

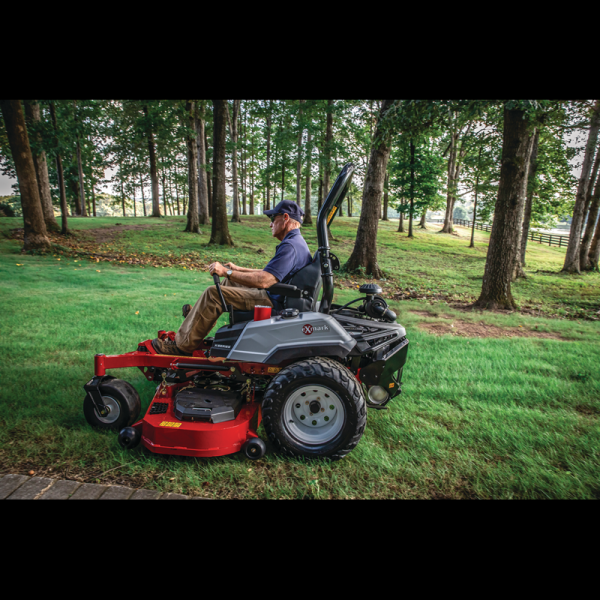

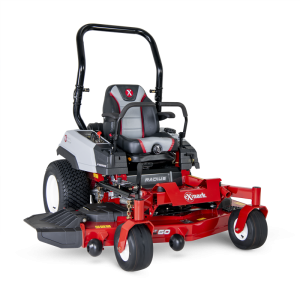

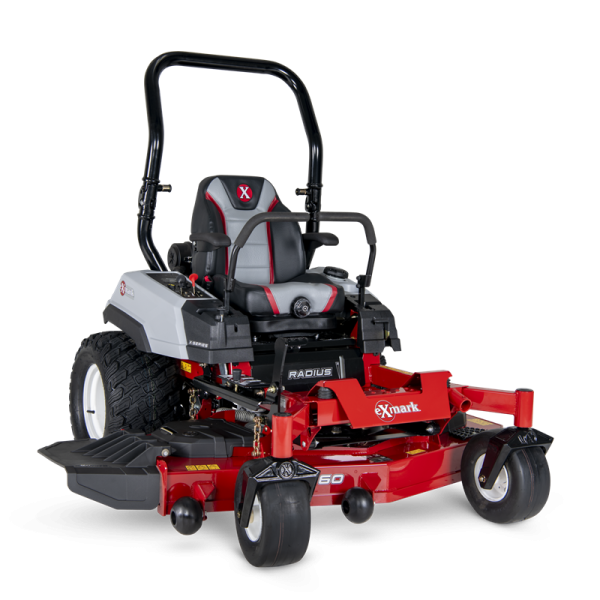

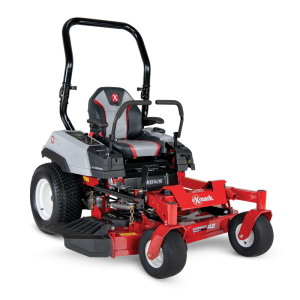

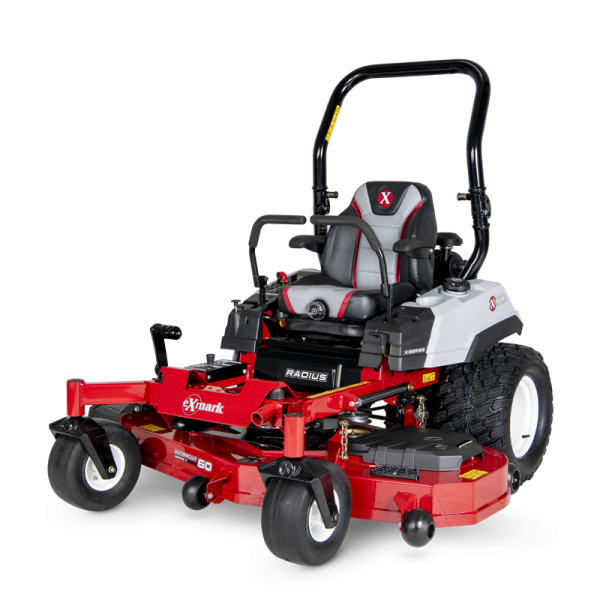

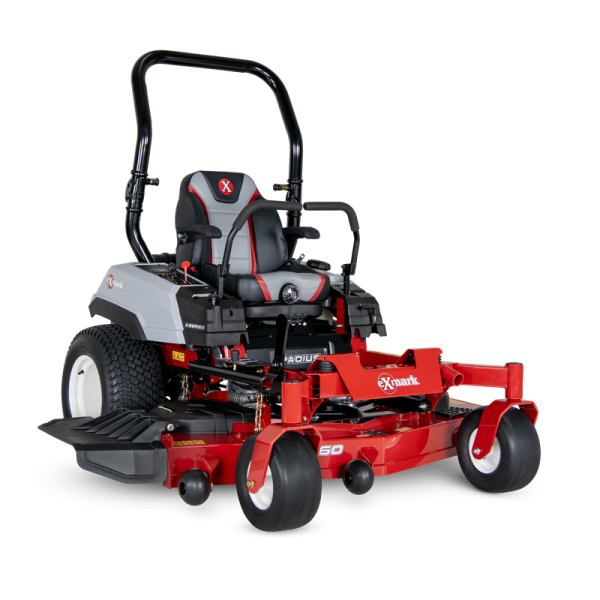

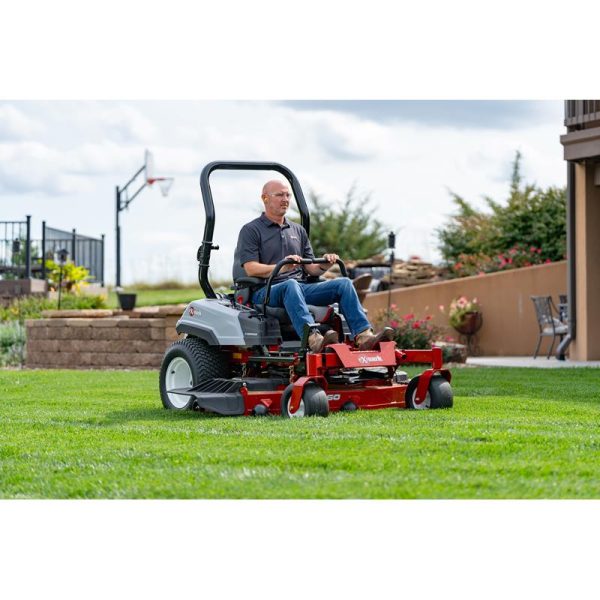

If you’re looking for the power and productivity of a premium commercial mower on a budget, you’re looking for a Radius X-Series. It combines features proven on our premier machines with the unbeatable value and efficiency you’ve come to expect from the Radius.Choose from 52- or 60-inch UltraCut Series 4 cutting decks, both with powerful Kawasaki commercial engines –– a FX801 on the 52-inch, and a FX921 on the 60-inch. The integrated Hydro-Gear transmissions work with aggressive 24-inch Kenda drive tires to provide unmatched traction and control, with forward speeds of up to 10 mph. Large semi-pneumatic caster tires, cast steel caster forks, and tapered caster pivot bearings provide years of maintenance-free performance. And with an adjustable full-suspension operator seat and isolated floor pan, the Radius X-Series provides added comfort.Looking for more power, larger cutting decks and cutting-edge productivity and efficiency? With cutting decks of up to 144-inches wide, our Lazer Z line is as good as it gets.

Call Us Now

Specs

UPC

193308225203

Onboard Intelligence

none

Starter

Electric

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Front Caster Tires

13 x 6.5-6, smooth tread, pneumatic. Sealed Taper Roller Bearings

Drive Tires

24 x 12-12 K3012

Parking Brake

Lever-actuated pawl brake.

Tractor Frame

Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm(.98")diameter spindle shaft and splined blade driver.

Electrical

12-volt battery with 15-amp alternator.

Cup Holder

Yes

Standard Features

Engine hour meter, cup holder, tow hitch and jack receiver

Seat

Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch

Transmission Speeds

Infinitely Variable

Engine Brand

Kawasaki

Transmission Brand

Hydro-Gear

Engine Model

FX801

Engine Displacement

852cc

Transmission

Hydrostatic

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–10.0 mph (16.1 kmph) forward, 0–6.0 mph (9.7kmph) reverse.

Drive

Hydro-Drive

Engine Spec

FX801V-S04-R

Engine Speed

3,820 rpm

Air Filter

Heavy-duty canister air filtration system

Fuel Capacity

7-gallon (26.5-L) single fuel tank with single fill location.

Drive Description

Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.

Fuel Type

Gas Carbureted

PTO Engagement

MagStop electromagnetic 200-ft-lb clutch

Drive System

Hydro-Drive

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Translucent Visual

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

Safety Package

Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.

ROPS

2-post foldable ROPS standard with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

52"

Deck Construction

10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.

Cutting Heights

1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

3 Blades at 18.00" Length

Bag Capacity

N/A

Width

64.3 in (163.3 cm)

Height

70 in (178 cm)

Length

80.3in (204.0 cm)

Curb Weight

992
