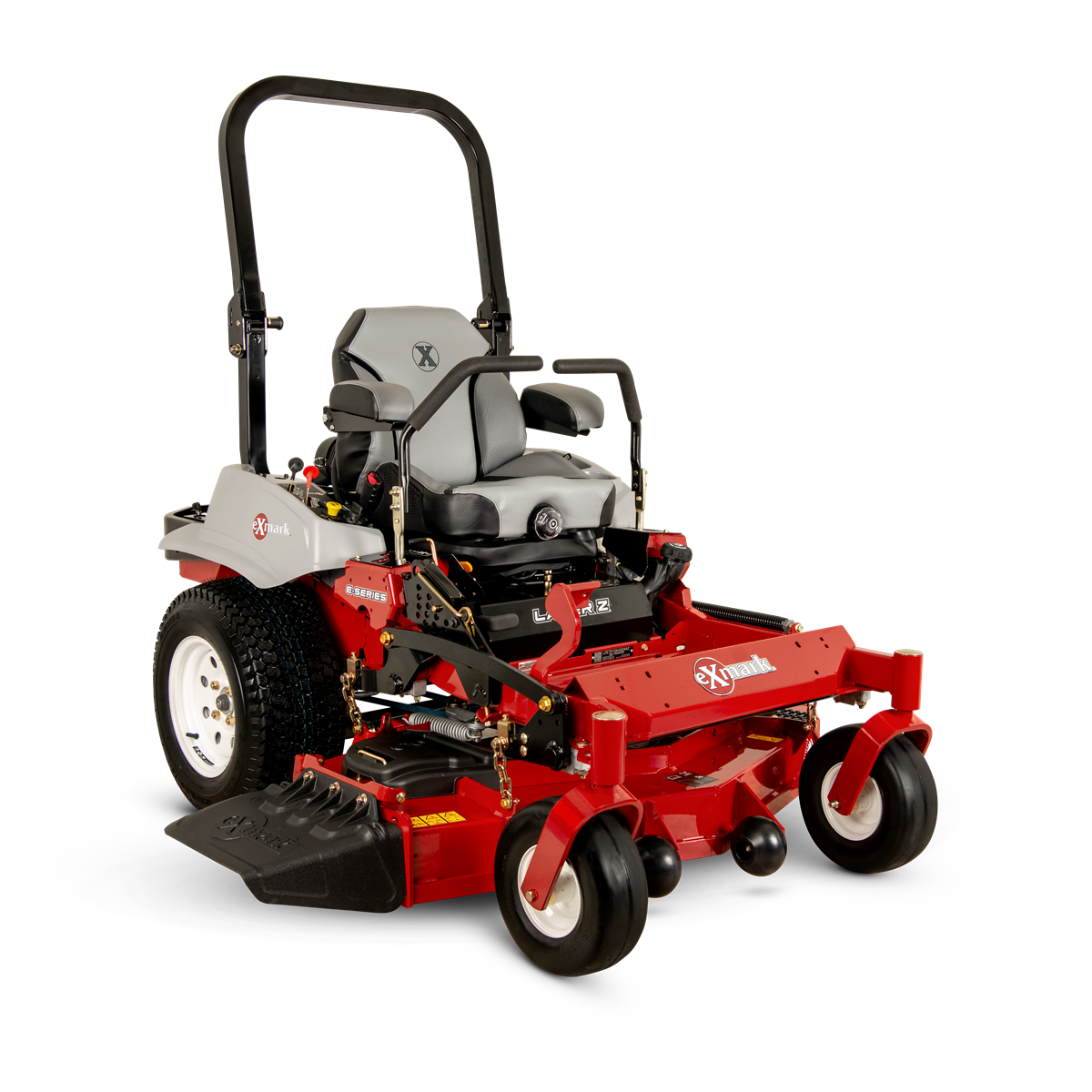

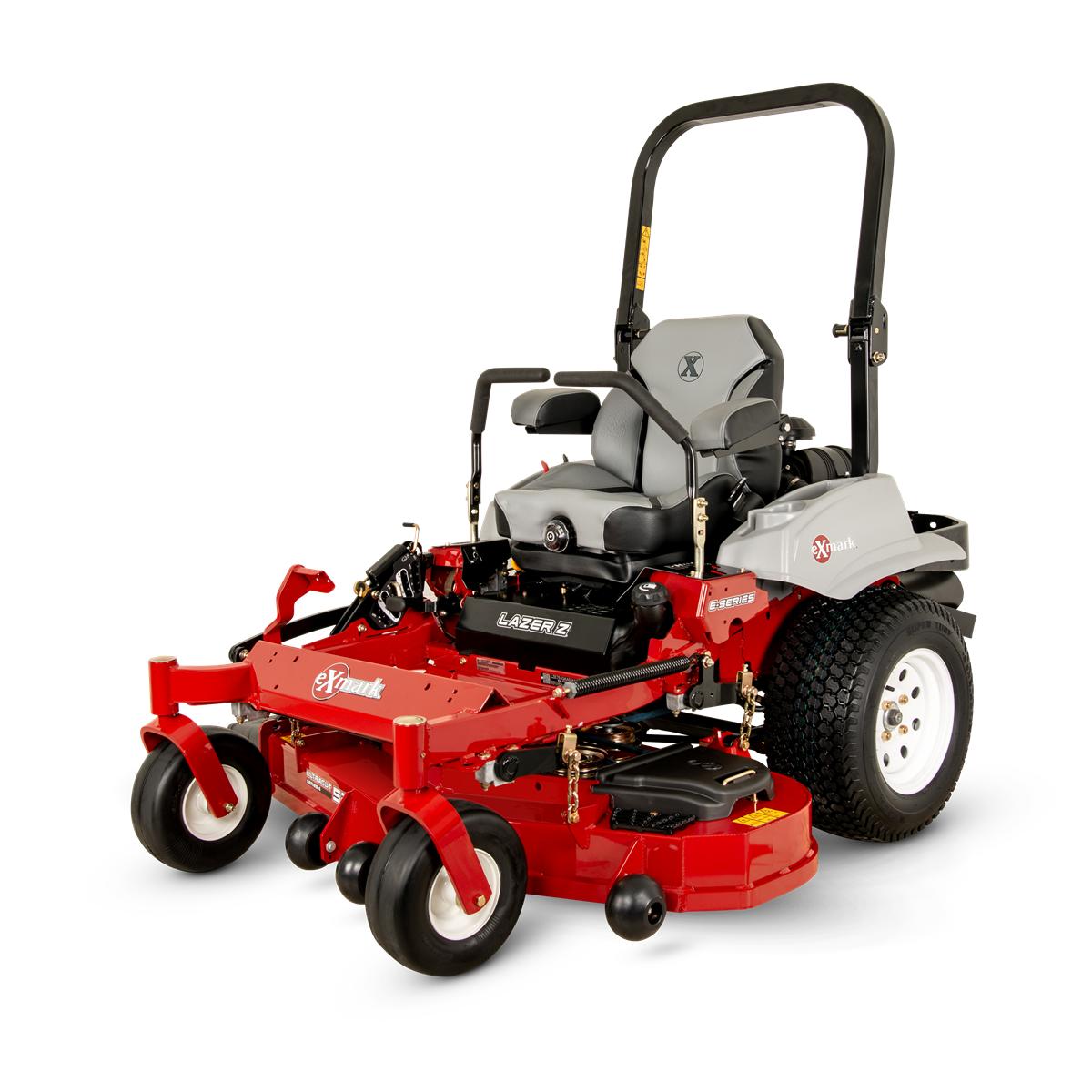

Exmark Lazer Z E-Series with 24.5 HP* Kawasaki FX751V Engine and 52″ UltraCut Series 4 Deck

$13,399.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

As the most affordable model in the Lazer Z line, the all-new 2025 Lazer Z E-Series delivers an unbeatable combination of cut quality, productivity, durability and value. Select from 48-, 52-, or 60-inch UltraCut Series 4 cutting decks, all equipped with a newly redesigned discharge chute that distributes clippings over a wider area. A choice of twin-cylinder Kawasaki, Kohler, or Vanguard twin-cylinder commercial engines are available, all equipped with heavy-duty external air filters. Power is delivered through unitized Hydro Gear pump and motor units for up to 11 mph forward ground speeds. A new full-suspension operator seat increases operator comfort during long work days.Like our entire lineup of zero-turn mowers, the Lazer Z E-Series delivers unmatched durability and long-term value. Be sure to check out the rest of the Lazer Z family, including the Lazer Z S-Series zero-turn mower.

Call Us Now

Specs

UPC

193308000480

Starter

Electric

Steering Control

Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.

Caster Forks

.50" thick caster yoke arms.

Front Caster Tires

13 x 5.0-6, smooth-tread, semi-pneumatic.

Drive Tires

23 x 9.50-12, 4 ply Super Turf®

Parking Brake

Lever-actuated disc brake.

Tractor Frame

Unibody, welded, heavy-duty 1.5" x 3" tubular steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Engine hour meter and cup holder

Seat

Deluxe, bolstered suspension seat with Elastomeric Vibration Control material. Adjustment: Fore and aft from Operators’ Position.

Engine Brand

Kawasaki

Transmission Speeds

Infinitely Variable

Engine Model

FX751V

Engine Displacement

852

Engine Series

V-Twin

Speed

Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.1 kmph) reverse.

Transmission

Hydrostatic

Drive

Hydro-Drive

Engine Spec

FX751V-ES11-R

Engine Speed

3,750 RPM

Air Filter

Heavy-duty canister air filtration system

Fuel Capacity

12-gallon (45.4-L), single fuel tank with single fill location.

Drive Description

Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.

Fuel Type

Gas Carbureted

PTO Engagement

MagStop electromagnetic 175-ft-lb clutch with spot brake

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Yes - electronic Sender

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

Safety Package

Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.

ROPS

2-post foldable ROPS standard with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

52"

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.

Cutting Heights

1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

3 Blades at 18.00" Length

Width

64.8 in. (164.6 cm)

Height

70.5 in. (179.1 cm)

Length

79.2 in. (201.2 cm)

Curb Weight

1136
